WT30 1W Data/Video Transceiver
20km 2.4G Drone Video Transmitter

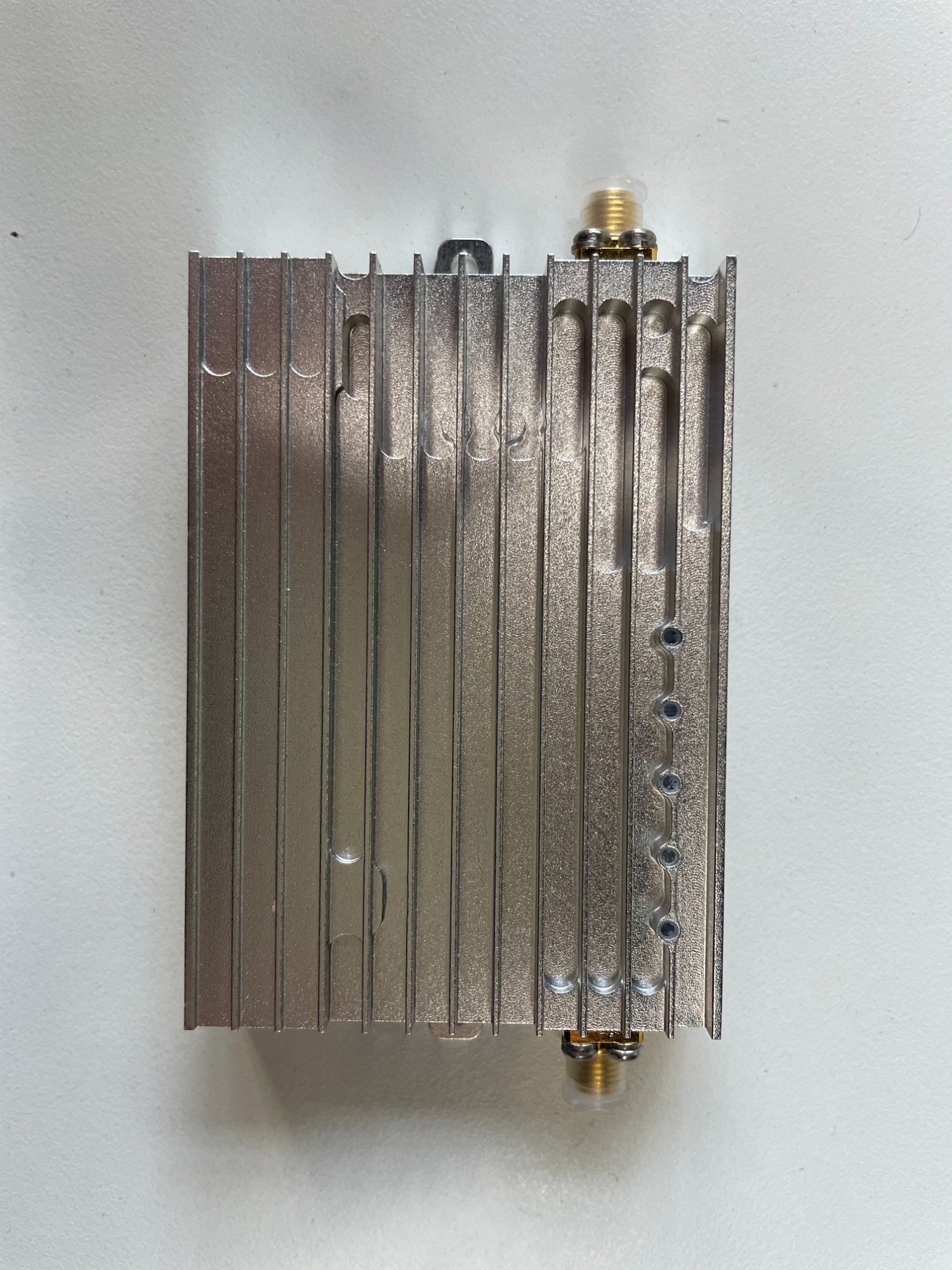

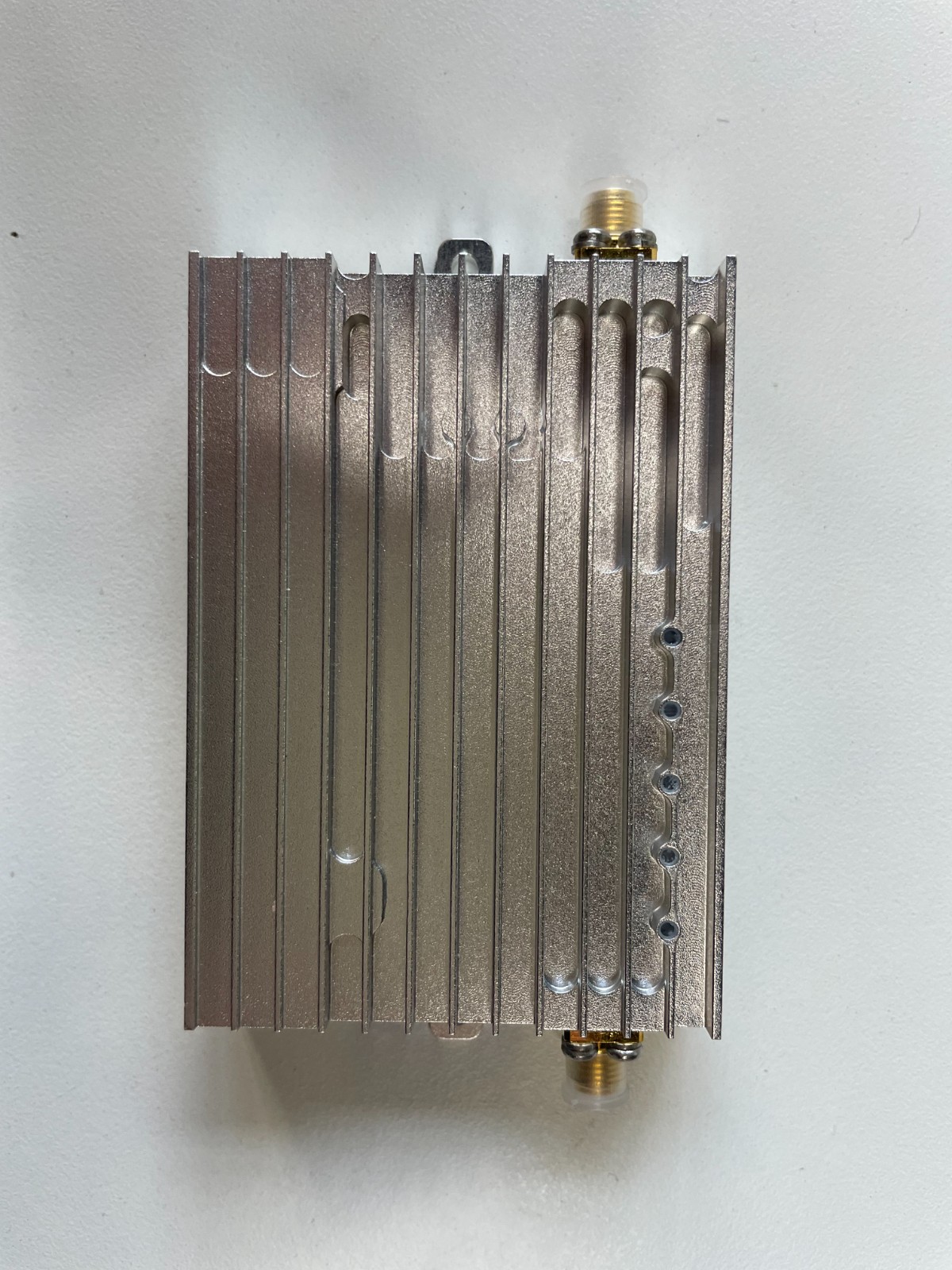

WT30 Long Range Data/Video Wireless Transceiver

2.4G 20km Drone Video Transmitter

 -- TDD OFDM full duplex wireless transceiver for video and data Link

-- Up to 30Mbps Iperf Throughput @20MHz channel

-- Supports Point-to-Point and Point-to-Multipoint Networks

-- Interface through web browser

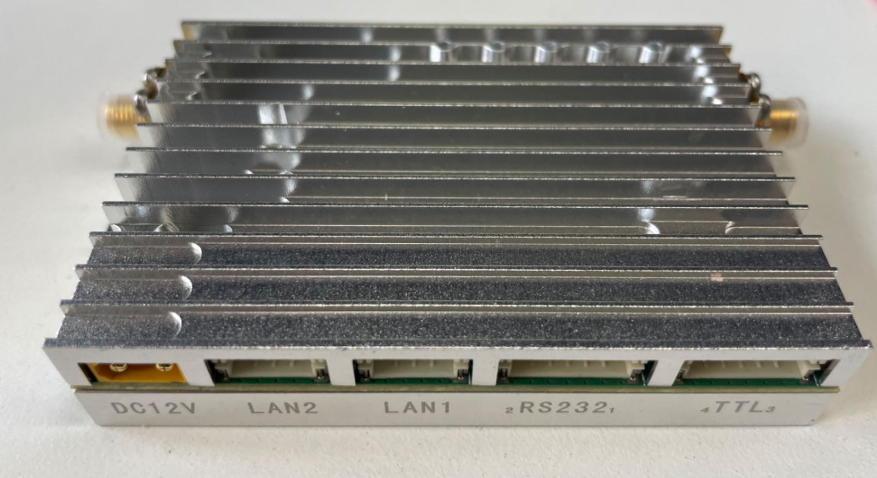

-- 2 Ethernet and 2 RS232 and 2 TTL uart data link

WT30 was designed for video and data wireless transmission with two way wireless data link. This OFDM radio device works at 800MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.

Features:

• TDD OFDM modulation

• Supports 806~826HMz band or 1428~1448MHz band

• Supports FHSS inside each band

• 5/10/20MHz band widths

• Maximum 30Mbps@20MHz throughput

• RF transmission maximum power: 1W

• Constellation: QPSK, 16QAM, 64QAM, self-adaption

• Sensitivity: -108dBm(1Mbps)

• Supports IP data transmission(2 Ethernet port)

• Supports serial data transmission(2 channel, RS 232 and2 channel, TTL )

• 1~3km(ground-to-ground), 20km/35KM(UAV-to-ground, optional distance grade)

• Web UI for management

• AES128 encryption

• Uplink and downlink stream control

• Networking mode: Point-to-Point, Point-to-Multipoint, Relay

• Movement Speed: Supports no less than 200km/h

• Compact size and light weight

• Rugged aluminum alloy housing

• Power input: 12V(1W),

• Power consumption: <9W(

• Dimensions:

• Weight:

Wireless networking with WT30

WT30 supports two operating modes: Access Node or Central Node. It can be managed

through web UI. WT30 supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission

bandwidth (maximum 30Mbps@20MHz throughput). Data from Central Node to Access Node,

we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and

downlink stream ratio can be controlled through web UI. When using WT30 for

Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth

(maximum 30Mbps@20MHz throughput) too. WT30 supports networking mo
