-- TDD OFDM full duplex wireless transceiver for data Link.
-- Up to 45Mbps Iperf Throughput.
-- Supports Point-to-Point, Point-to-Multipoint, Relay and Mesh networks
-- Interface through web browser control
-- 2 Ethernet and 2*RS232/1*TTL data link
-- Wireless transceiver with 1W*2 RF power.
-- Frequency band: 635~675HMz, 1300~1530MHz
-- Dimensions: 180*106.2*28mm, Weight: 520g.

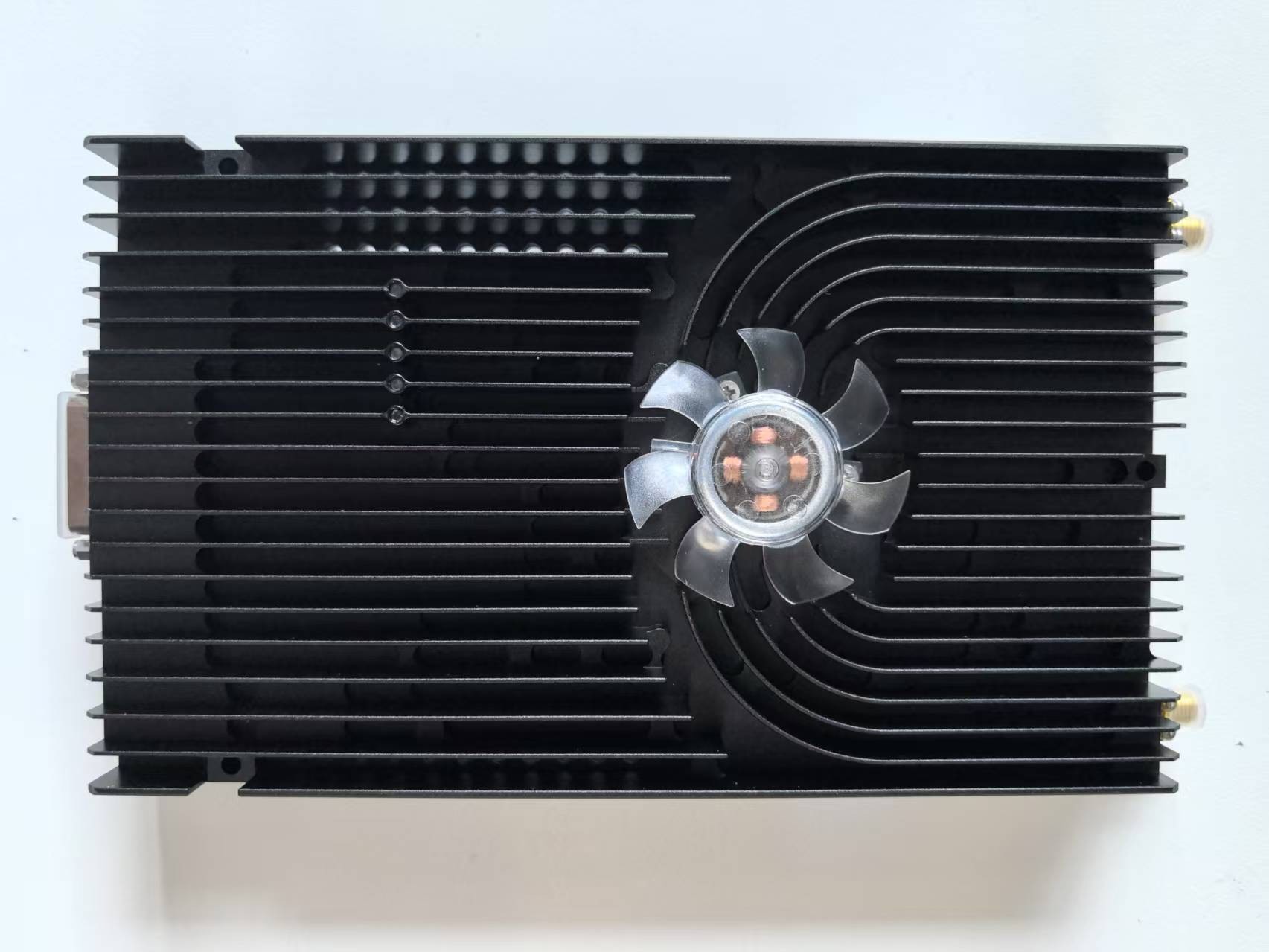

WTF40 10W Data/Video Wireless Transceiver
l TDD OFDM full duplex wireless transceiver for video and data Link
l Up to 45Mbps Iperf Throughput @20MHz channel
l Supports Point-to-Point and Point-to-Multipoint and MESH Networks
l Interface through web browser
l 2 Ethernet and 3 channel uart data link
l Long distance wireless transceiver with 10W RF power
WTF 40 was designed for video and data wireless transmission with two way wireless data link. This OFDM radio device works at 600MHz -2.6GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.
WTF30 adopts Software Radio (SDR) architecture to realize MESH networking. With different power amplifiers to achieve different distances. This model is equipped with dual power amplifier 40dBm, can achieve more than 150KM high-definition video transmission, suitable for UAV 100-200KM distance application.
Supports multi-node mesh networking, a maximum bandwidth of 20MHz, Up to 45mbps, intelligent frequency selection, and AES256.
Features:
• TDD OFDM modulation
• Supports 600-2600MHz band
• Supports FHSS inside each band
• 5/10/20MHz band widths
• Maximum 45Mbps@20MHz throughput
• RF transmission maximum power: 2*10W
• Constellation: QPSK, 16QAM, 64QAM, self-adaption
• Sensitivity: -108dBm(1Mbps)
• Supports IP data transmission(2 Ethernet port)
• Supports serial data transmission(2 channel, RS 232 and 1 channel, TTL )
• 3~10km(ground-to-ground), 100-200KM(UAV-to-ground, optional distance grade)
• Web UI for management
• AES256 encryption
• Uplink and downlink stream control
• Networking mode: Point-to-Point, Point-to-Multipoint, Relay MESH
• Movement Speed: Supports no less than 1000km/h
• Compact size and light weight
• Rugged aluminum alloy housing
• Power input: 24V(2*10W),
• Power consumption: <70W(
• Dimensions: 180*106.2*28mm
• Weight: 520g
Typical rating：
Model | Power input（V） | Power consumption（W） | RF（dBm） | distance（KM） |
WTF40 | 18-26 | 70 | 40±1 | 100-200 |
Note for use:
* Receiving and sending antennas, the device is not connected may cause damage to the device.
* The continuous work of the equipment requires certain heat dissipation treatment.
* When each port is in the receiving state, the received signal strength cannot be > 10dBm, otherwise the port will be permanently damaged; It is recommended that the distance between antennas on a module not be smaller than the distance between device ports. The distance between antennas on two modules is greater than 1 m. (This rule applies to the distance between a power module and a power module, and the distance between a power module and a power module.)
Bandwidth sensitivity rate meter:
20MHz bandwidth | MCS | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Dual-antenna sensitivity（dBm） | -104 | -101 | -98 | -95 | -91 | -89 | -86 | -83 | -80 | |
SNR（dB） | -8 | -5 | -2 | 4 | 7 | 10 | 13 | 16 | 19 | |
UDP packet （Mbps） | 10KM Range model | 1.5 | 3.2 | 6.4 | 13 | 20 | 26 | 33 | 40 | 47 |
30KM Range model | 1.4 | 2.9 | 5.9 | 12 | 18 | 24 | 31 | 37 | 43 | |
50KM Range model | 1.3 | 2.7 | 5.5 | 11 | 17 | 22 | 28 | 34 | 40 | |
100KM Range model | 1.1 | 2.4 | 4.7 | 9.6 | 14 | 19 | 24 | 29 | 34 | |
150KM Range model | 0.9 | 1.9 | 4.0 | 8.3 | 12 | 16 | 21 | 25 | 29 | |
200KM Range model | 0.8 | 1.7 | 3.6 | 7.4 | 11 | 14 | 18 | 22 | 26 | |
250KM Range model | 0.7 | 1.5 | 3.2 | 6.6 | 10 | 13 | 16 | 20 | 23 | |
300KM Range model | 0.6 | 1.4 | 2.9 | 6.0 | 9.1 | 12 | 15 | 18 | 21 |
Intelligent frequency selection:
WTF40 supports intelligent frequency selection, through the whole network dynamic real-time spectrum detection, each node according to the electronic environment, interference and other factors, in the pre-set frequency list can only dynamically adjust their own working frequency, to achieve intelligent dynamic different frequency networking, effective automatic avoidance of interference.
In-band anti-jamming:
When the interference ratio of the signal in the WTF40 band is less than 15%, it can ensure normal communication and data transmission.
AES encryption:
WTF40 supports AES256 encryption technology for air interface encryption.
Bandwidth configuration:
WTF40 supports 5 MHZ, 10 MHZ, and 20MHz bandwidths.
Frequency band:
Standard 1350-1450Mhz, optional 800-830MHz,635-675MHz, or custom 600-2600MHz.
Rf transmitting power:
WTF40 is available in a 30dBm maximum output power version.

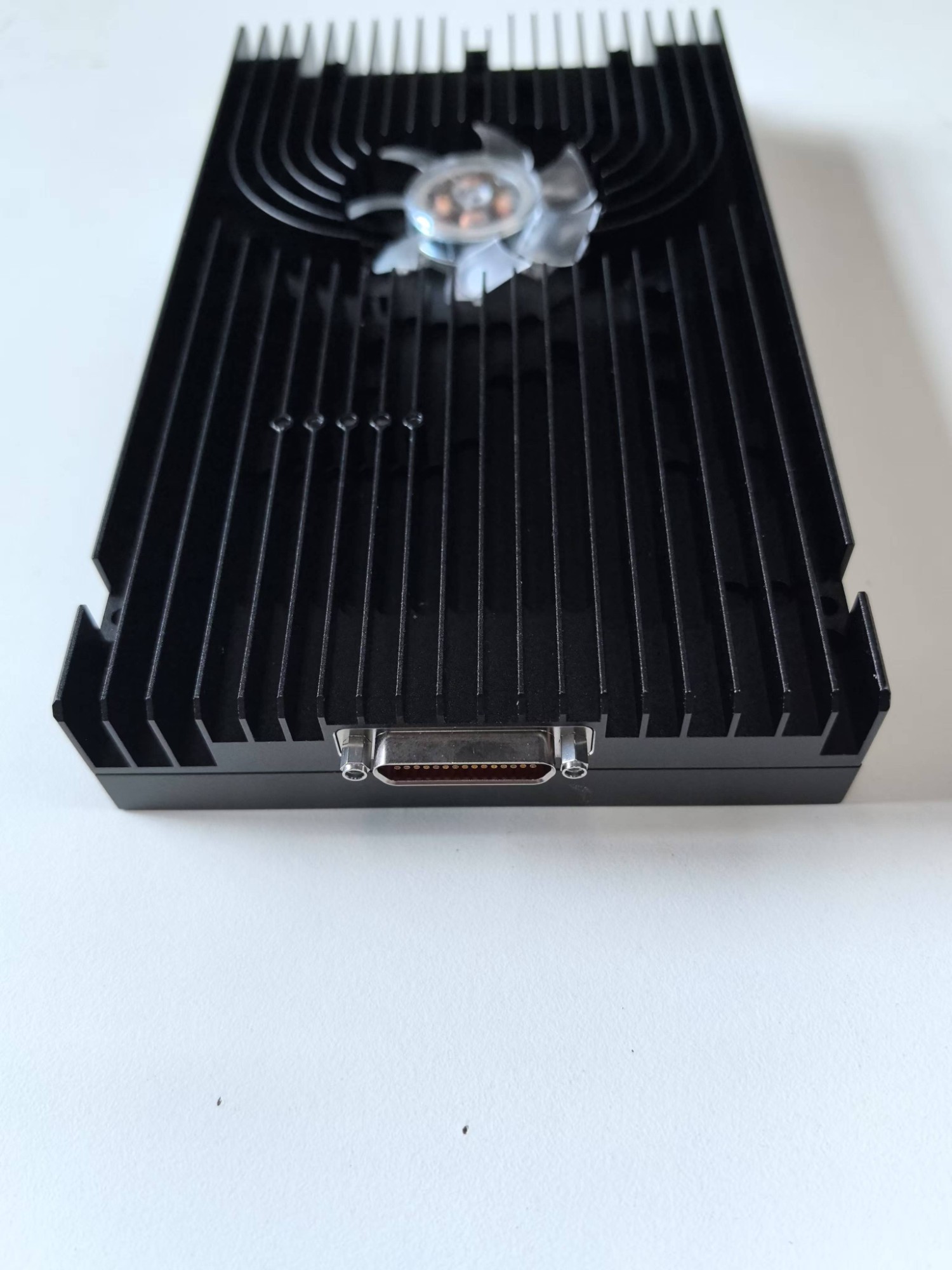

Hardware interface description
The indicators on the WTF40 panel from left are:
Two-color light 1: green is the power indicator, the power supply is normal green; Red indicates that the program is downloaded. Off the indicator.
Two-color light 2: chain building indicator: green indicates chain building, red indicates chain breaking
Two-color indicator 3: The signal strength indicator is green, yellow, and red from strong to weak. None.
Dual color indicator 4: Indicates the indicator of network port 1
Bicolor indicator 5: Indicates the indicator of network port 2

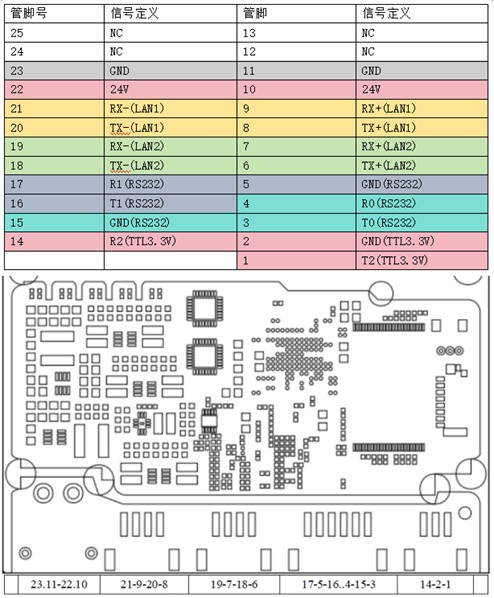

WTF40 sequence definition:

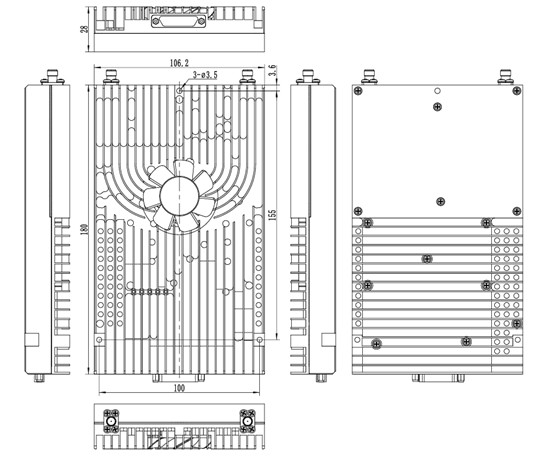

Mechanical structure: Weight 520g
