MCS27 500mw Data Transceiver

MCS27 MESH Data Transmission Radio

     The MCS27 MESH data transmission radio enables centerless long - distance communication among a large number of nodes. All nodes can communicate autonomously without interference. It supports the access of a large number of dense nodes for wireless transmission, dynamic networking, and flexible re - organization. It also supports full - duplex communication. While a node is sending data, it can simultaneously receive data from all other nodes without interference. In a centerless situation, it can achieve interconnection between any node within the network and all other nodes.
    The MCS27 MESH data transmission radio supports the access of a large number of nodes, multi - hop MESH, a transmission power of 500mW, a sensitivity of - 114dBm, a maximum effective data transmission rate of 740kbps, and an ultra - low latency of 2ms. It can be applied in scenarios such as swarm drones, the Internet of Things, data links, remote control, data collection, artificial intelligence, and individual equipment.
     There are multiple models available for the MCS27 MESH data transmission radio. The appearance and functional characteristics of each model are the same, only the operating frequency bands and networking scales are different.

Model Selection Instructions:

Technical Parameters
◆ Frequency Range: 820 - 854MHz (other frequencies available upon customization)
◆ Wireless Bandwidth: Configurable as 1MHz/500kHz/250kHz/125kHz
◆ Supported Number of Networking Nodes and Hops: Up to 1024 nodes with a maximum of 16 hops or 256 nodes with a maximum of 3 hops. Refer to the model selection table.
◆ Frequency - hopping Speed:
Greater than 1800 times per second@1MHz
Greater than 900 times per second@500kHz
Greater than 450 times per second@250kHz
Greater than 225 times per second@125kHz
◆ Effective Data Rate: Maximum 740kbps@1MHz, 370kbps@500kHz, 185kbps@250kHz, 92kbps@125kHz
◆ Full-duplex Communication: Supported
◆ Line-of-sight Distance from Air to Ground: ≥ 30 km
◆ Centerless Self-organizing Network: Supports centerless self-organizing network. The damage of any node in the network will not affect communication.
◆ Network Establishment Time: Within 1 second
◆ End-to-end Transmission Delay: Minimum 2ms
◆ Dynamic Topology: Supports dynamic topology, including node joining and leaving. Normal communication can be maintained even when the network topology changes or deforms.
◆ Transmission Power: 500mW (27dBm)
◆ Receive Sensitivity: -114dBm@125kHz, -111dBm@250kHz, -108dBm@500kHz,

-105dBm@1MHz
◆ Low Power Consumption: Power consumption is less than 1W during reception, less than 4W during transmission, and the average operating power consumption is less than 2.5W.
◆ Frequency Stability: ≤1ppm
◆ Encryption: 128-bit encryption
◆ Operating Voltage: 7V-36V
◆ Operating Temperature: -40-+85℃

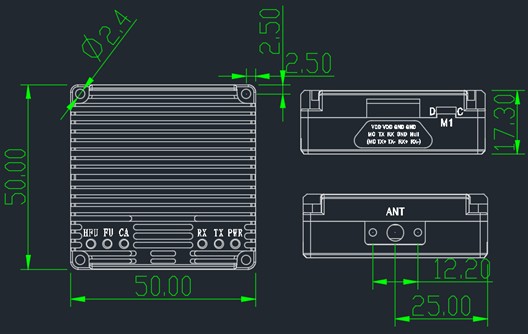

◆ Dimensions (excluding the part of the SMA connector protruding from the housing): 50*50*17.3mm, Weight: 56g
